Lever-Loaded Multifunctional Four-Ball Tester
A multifunctional four-ball platform for lubricant testing, with configurations for tapered-roller-bearing shear stability, rolling pitting and thrust-ball-bearing energy-consumption evaluation.
FOUR-BALL TESTERS
Capabilities
- Supports sliding and rolling contact configurations.
- Measures friction torque, temperature, coefficient of friction and wear-scar diameter.
- Select the fixtures and accessories required for each test method.
Selected specifications
| Load | 100–12,000 N |
|---|---|
| Rotational speed | 100–6,000 r/min |
| Temperature | Room temperature–200 °C |
| Motion | Sliding and rolling |
| Contact geometry | Point contact; line contact with appropriate configuration |
Confirm the final configuration and operating limits with our team for your specific test method.
← Browse Four-Ball TestersRelated instruments
3 models / items

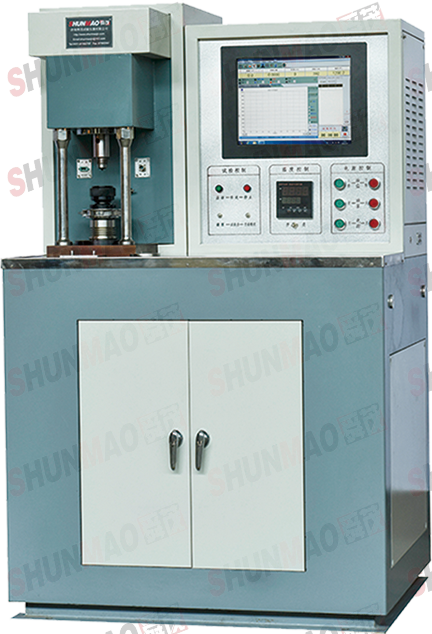

Electro-Hydraulic Servo Four-Ball Tester
Evaluate lubricant load-carrying capacity and anti-wear performance under high point-contact pressure using sliding four-ball contact.
View model details →
Lever-Loaded Four-Ball Tester
Assess lubricant load-carrying capacity and long-duration anti-wear performance with a deadweight-and-lever loading system.
View model details →

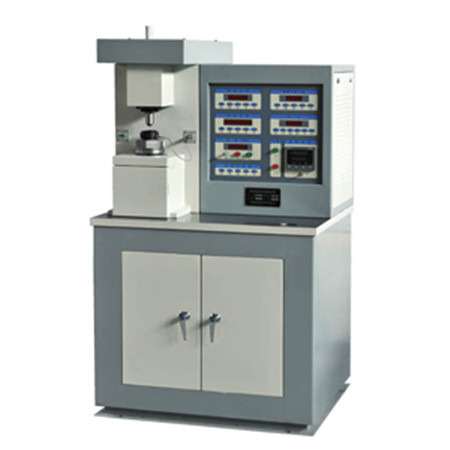

Computer-Controlled Long-Duration Four-Ball Wear Tester
